Window System

EX88S Aluminum-Clad Wood Window System

A high-performance aluminum-clad wood window system combining the warmth of natural wood interiors with the durability and weather resistance of thermally broken aluminum construction.
Product Overview

Designed for premium residential projects requiring refined interior wood detailing, strong exterior weather protection and flexible fixed, tilt-and-turn and inward-opening configurations.

Request a QuoteDownload Product Guide
Product Features

Engineered as a Complete

Window System

Natural Wood Interior Finish

Interior wood cladding brings warmth, texture and a furniture-quality appearance to the room, with multiple wood species, stains and coating colours available.

‍

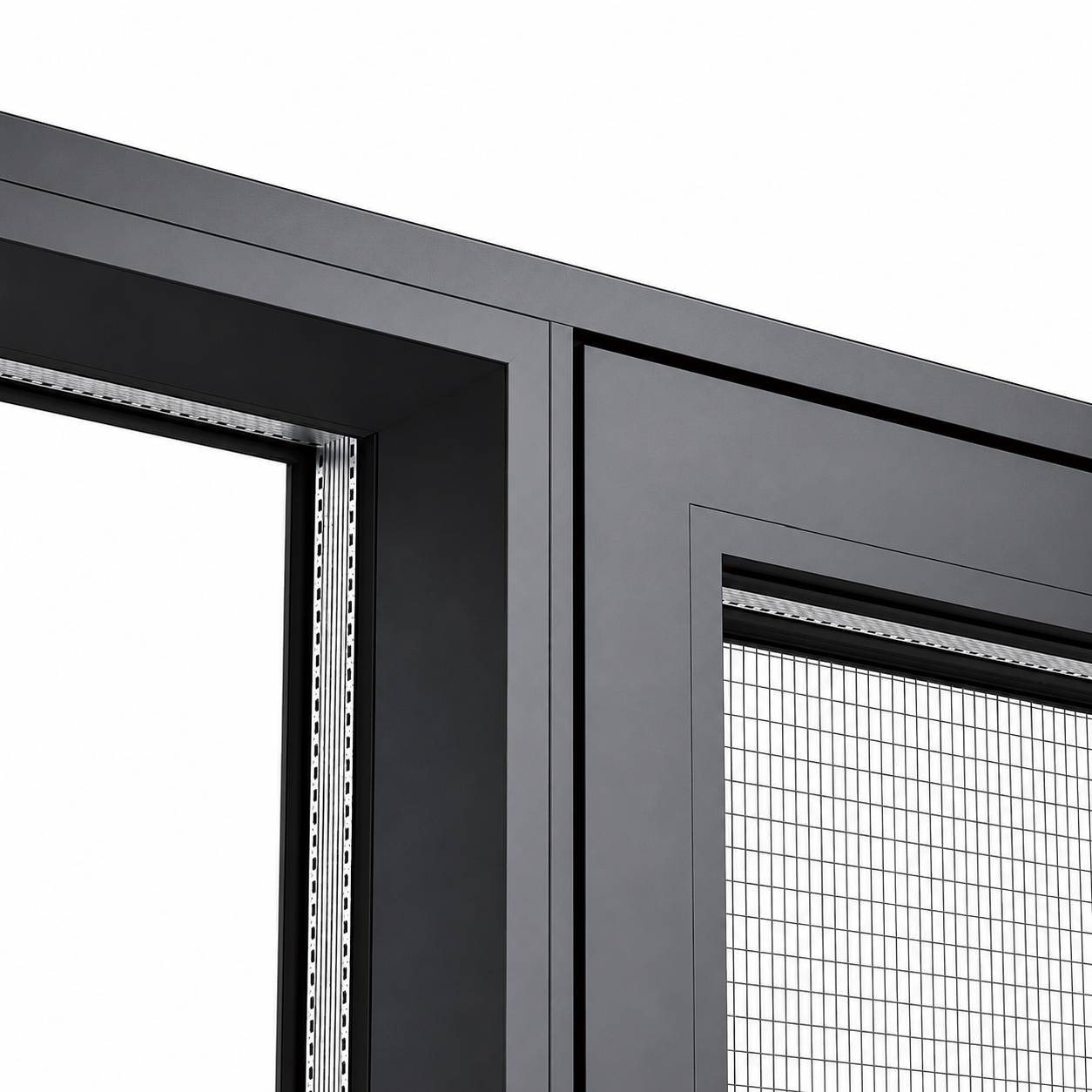

Durable Aluminum Exterior

The thermally broken aluminum structure protects the exterior from changing weather conditions while reducing the maintenance associated with exposed exterior wood.

‍

Flexible Tilt-and-Turn Ventilation

The operable sash can open fully inward for maximum airflow and cleaning access, or tilt inward for secure and controlled everyday ventilation.

‍

High-Performance Thermal Construction

A 75 mm frame, wide insulating thermal break and insulated glazing options support energy efficiency, indoor comfort and performance across a range of climate conditions.

‍

Certified Air, Water and Structural Performance

Selected fixed and operable EX88S configurations achieve CW-PG80 ratings, with tested resistance to high design pressures and water penetration.

‍

The Elite Series brochure describes EX88S as thermally broken aluminum with interior wood cladding. It lists a 75 mm frame in the EX88S detail drawing, CW-PG80 ratings for fixed and operable units, and NFRC-certified U-factor configurations from 0.20 to 0.33.

‍

Comfort
Insulated glazing, thermal separation and natural interior wood finishes create a warmer and more refined indoor environment.
Ventilation
Tilt-and-turn operation supports both secure background ventilation and full inward opening for maximum airflow and cleaning access.
Integration
Natural wood interiors and durable aluminum exteriors allow the system to coordinate with both interior millwork and exterior architecture.
PRODUCT DATA

Technical Specifications

System & Construction

System Type

Thermally broken aluminum-clad wood window system

Frame Depth

75 mm

Exterior Construction

Thermally broken aluminum alloy

Interior Finish

Natural wood cladding

Thermal Break

Approximately 38 mm insulating barrier with optional low-emissivity film

Standard Glazing

1-inch insulated glazing with 6 mm tempered glass

Glazing Options

Double or project-specific triple glazing

Wood Options

Oak, teak, walnut, cherry and selected custom finishes

Exterior Finish

Factory powder-coated standard or custom RAL colours

System Integration

Fixed and operable units with integral or combination mullions

Operation & Components

Opening Types

Fixed, inward opening, tilt-and-turn and hopper

Hardware

Multi-point tilt-and-turn hardware with security handle

Screen Options

Hinged screen or retractable rolling screen

Divided-Lite Options

GBG, simulated divided lite and true divided lite

Fixed-Window Size Range

Approximately 20–120 in wide × 20–120 in high

Operable-Sash Size Range

Approximately 20–47 in wide × 20–80 in high

Installation Options

Strap anchor or through-frame fastening

French-Window Configuration

Available with coordinated meeting-rail construction

Performance & Certification

Fixed-Window Classification

CW-PG80 for the listed EX88S fixed configuration

Operable-Window Classification

CW-PG80 for the listed EX88S operable configuration

Certified Fixed Test Size

1500 × 2000 mm

Certified Operable Test Size

1200 × 1800 mm

Design Pressure

Up to ±80 psf for fixed units and ±75 psf for operable units

Water Penetration Resistance

Up to 15.04 psf for the listed configurations

NFRC Thermal Performance

NFRC-certified U-factor configurations available from 0.20 to 0.33

Specifications represent general system capabilities and selected tested configurations. Final wood species, finish, glazing, dimensions, hardware, screen type and certified performance are confirmed through project-specific review and approved shop drawings.

PRODUCT DETAILS

Explore the System in Detail

1
Opening & Operation
Explore how the system opens, closes and supports everyday ventilation, access and use.
-
Opening configurations
-
Fixed and operable combinations
-
Ventilation modes
-
Panel and sash operation
2
Frame, Glazing & Performance
Review the frame construction, glazing options and performance-related details that shape comfort, durability and visual proportion.
-

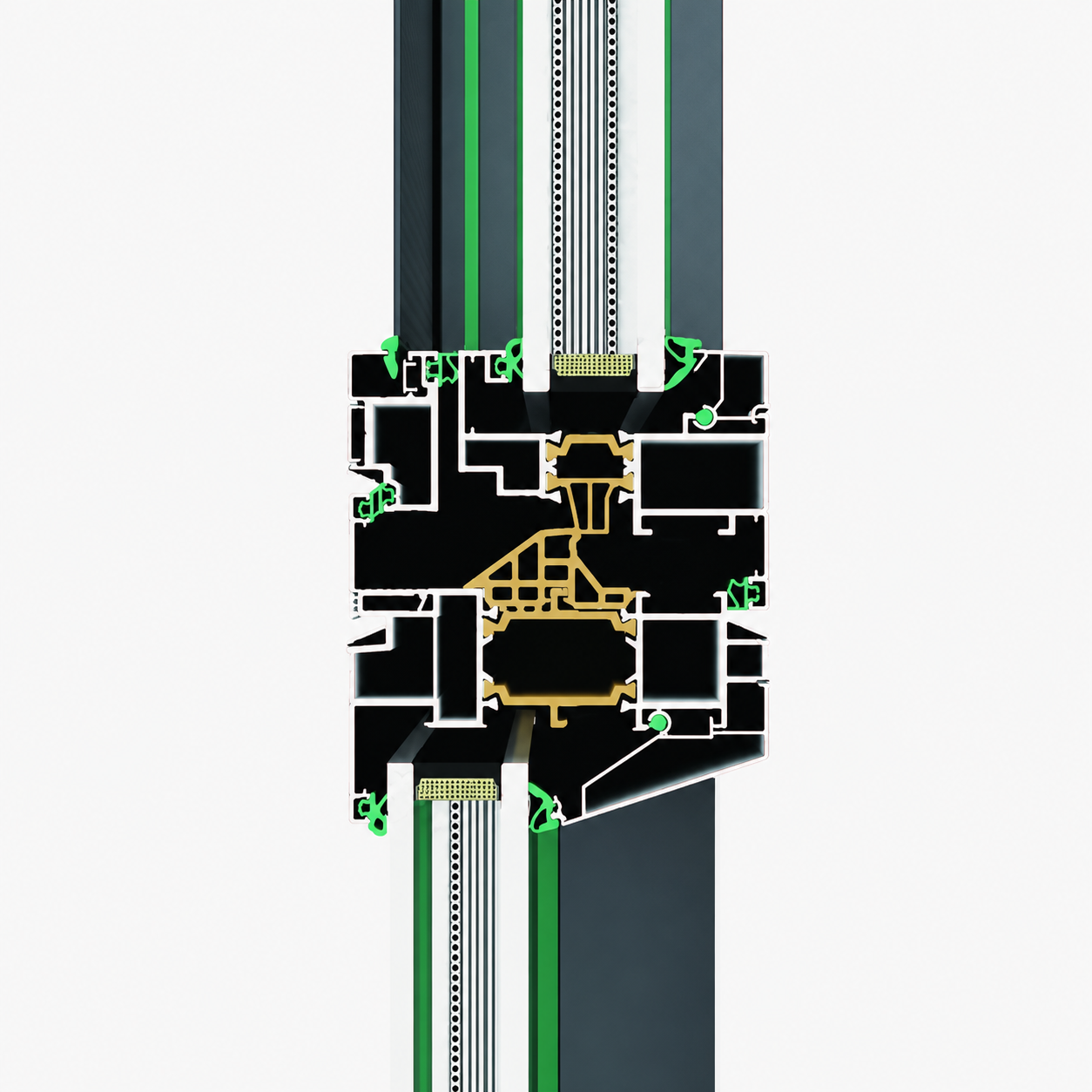

Frame and section details
-
Insulated glazing configurations
-
Thermal and acoustic design
-
Sealing and drainage
3
Hardware, Screens & Finishes
Explore the hardware, screen systems and finish options used to complete the window system.
-
Handles, hinges and locking
-
Screen configurations
-
Interior and exterior finishes
-
Optional accessories
